| USE | KS Standards Performance Measurement | Total flux, Color temperature, Color Rendering index, Luminance efficiency, Power consumption, Power factor, Harmonics distortion |
|---|---|---|
| Q&C | Quality control | |
| R&D | Measurement for improving product performance | |
| Feature | Integrated | Measurement both KS standard and performance items as one equipment |

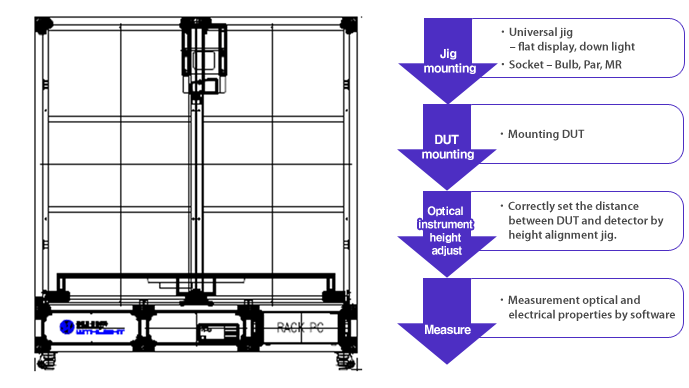

| Convenience | Easy to mount equipment to measure and save the data | |

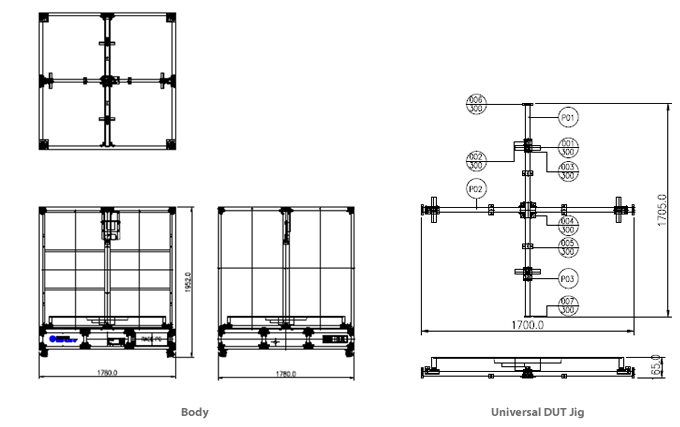

| Compact | Sufficient space required 2m x 2m, provides its own darkroom | |
| Reliability | Accurate measurement optical and electrical properties by spectrometer and power analyzer | |
| Diversity | Possible to measure various DUT (flat displays, straight fluorescent lights, bulbs, MR, PAR, street lights, security lights and so on) | |
| Economic | Great price less than one spectrometer price |
| Items | Measurement | ||
|---|---|---|---|
| Range | Accuracy | ||
| Wavelength | [nm] | 350~850 | 0.3 |
| Color coordinates | Cx, Cy [ ] | 0~0.7 | 0.003 |
| Illumination | Ev[lx] | 0.01~1000 | < 4% |
| Luminous intensity | Ie[cd] | 0.01~100 | < 4% |
| Total Flux | v[lm] | 0.01~1000 | < 5% |
| Color Temperature | Tc[K] | 0.01~100 | 50 |
| Color Rendering Index | Ra [ ] | 0~100 | 1.0 |
| Current consumption | Id [A] | 0~20 | 0.1% |
| Voltage consumption | Vd [V] | 0~500 | 0.1% |
| Power consumption | Pd[W] | 0~2,000 | 0.1% |
| Power factor | F[] | 0~1 | 0.01% |
| Harmonics distortion | THD[%] | 0~100 | 0.1% |
| Luminous Efficiency | K[lm/W] | 0~683 | 2.0 |
| Items | Measurement DATA | ||
|---|---|---|---|
| KTC | Withlight | ||
| Total Flux | v[lm] | 4551.335 | 4537.367 |
| Color temperature | Tc[K] | 4866 | 4861 |
| Color Rendering Index | Ra [ ] | 78.6 | 77.7 |
| Current consumption | Id [A] | 0.251 | 0.243 |
| Power consumption | Pd[W] | 54.10 | 54.05 |
| Power factor | PF | 0.976 | 0.965 |
| Luminous Efficiency | K[lm/W] | 84.128 | 83.948 |
