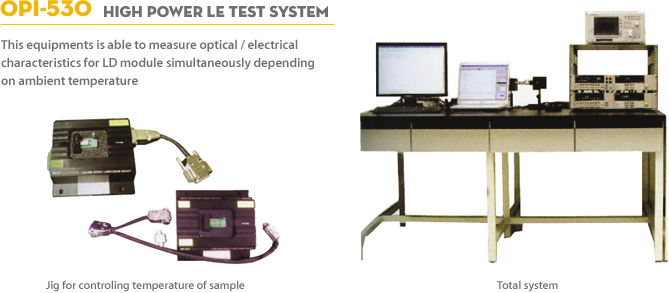

    • opi-530
    •
    •
    • ¤ýIt automatically performs all measurement conditions set for temperature, luminous, electricity serially only by one click
    • ¤ýCategory of laser diodes to be possibly measured: DIL(Dual in Line), Mini-DIL, 13-pin/14-pin Butterfly, 20-pin/26-pin
         Butterfly
    • ¤ýMeasurement items - Total spectrum pulse for laser diode
    •  - Environment and temperature for LD/Measurement
    •  - Supply current, luminous intensity and internal current value for PD
    •  - Supplying bias value for internal PD / Measurement, storing PD gain and Offset in PD
    •  - LD Peak Pluse, Current/Voltage/Measuring position of Kink which is
    •  - Slope Efficiency, Àü·ù Threshold, Driving voltage graph depending on current increase, 1st differential graph, luminious
         intensity graph, internal PD current graph, Sweep graph
    • ¤ý Slow Current Increment / Decrement functions for preventing damages due to surge current in LD package
    •
    •
    •
    • ÁÖº¯ ¿Âµµ¿¡ µû¸¥ LDÀÇ L-I-V Ư¼º ÃøÁ¤
    •
    • ¤ýIt is able to measure optical / electrical characteristics for sample by changing temperature between 0¡É ~ 80¡É
         [Temperature resolving power:0.01¡É]
    • ¤ýCurrent supplying and measurement is available for up to 5A(for 2440)

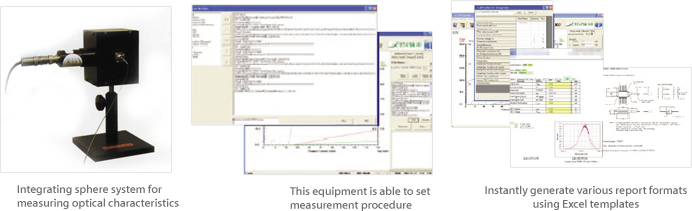

    • ¤ýIt uses 2 inch integrating sphere system for LD optical input and LD mount for controling LD package temperature and
         power supplying
    •
    •
    •
    • PD »öº¸Á¤
    •
    • ¤ýIt uses PD color correction index in order to get exact reaction value for PD by finding exact color range of LD in connection
         with Spectrum Analyser
    •
    • R&D, ½Å·Ú¼º ÃøÁ¤¿¡ ÃÖÀû
    •

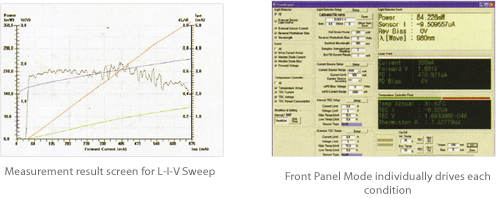

    • ¤ýCurrent - voltage - Luminous sweep measurement
    • ¤ýIt is possible to measure objects for R&D immediately using Front Panel mode
    • ¤ýMeasurement for optical / electrical characteristics depending on temperature
    • ¤ýVarious power supply and measurement ranges are selectable using Keithley Sourcemeter
    • ¤ýVarious custom - tailored adaptors
    • ¤ýSpecial functions can be added based on customer request (option)
    •
    • Story Mode
    •
    • ¤ýThis mode stores various measurement conditions on custom based making it possible to measure various LD package.
    • ¤ýVarious temperature conditions are stored, and measurement is performed on those conditions.
    •
    • º¸°í¼­ »ý¼º
    •
    • ¤ýMeasurement result can be stored as CSV and other formats, and this function is able to export the result by Excel, and
         thus generate reports by integrating data on Excel template based on user requirement
    • ¤ýIt is able to edit location of measurement items by fitting various items to template
    •
    • ¤ýProviding standard measurement mode of International Commission on Illumination and KS
    • ¤ýCorrection agent of Korea Reserch Institute of Standards and Science (KRISS) (Optional)
    •
    • ±â¼úÁö¿ø ¹× »çÈİü¸®
    •
    • ¤ýUser oriented setup and user guide
    • ¤ýSoftware development based on customer requirement
    • ¤ýProviding new measurement method and information via LED standard consortium and International Commission on
         Illumination and Luminous intensity measurement club activities
    • ¤ýRapid A/S
    • ¤ýSupport for JIG to help various sample measurement
    •
    • Specifications
      Voltage Range ¡¾0.2V ~ ¡¾40V
      Current Range ¡¾10¥ìA to ¡¾5A,(2440 Only)
      Control Temperature 0¡É to + 80¡É Resolution 0.005¡É
      Sweep Measure Speed
      Resolution : 1fA
      Source/Sink Limit ¡¾10.5V @ ¡¾5025A, ¡¾42V @ ¡¾1.05A(:2440)
      Dimension 1,170mm(W)x1,022mm(D)x1,367mm(H)
    •
