    • OPI-1000INTEGRATING SPHERE SYSTEM

      Integrating Sphere System OPI-1000 is available for custom-tailored production and its measurement is accurate
      as over 97% of reflection rate. Integrating Sphere System measures Spectral characteristics :
      Peak wavelength, Medium wavelength, Center wavelength, Primary wavelength, Full Width Half Max,
      CIE1931 Color coordinate, Correlated color temperature, etc.

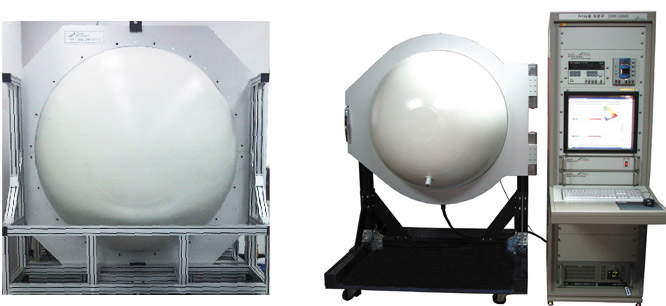

      Integrating Sphere System
    •
    • ¤ýProducing various integrating sphere systems with size of 30cm~2m
    • ¤ýAluminum apppearance and internal coating with Barium sulfate
    • ¤ýNumber of ports is selectable based on customer requirement
    •
    •
    • ¤ýHigher than reflection rate of 97% (Visible)
    • ¤ýf1¡¯<1.5% Class L in inaccuracy
    • ¤ýCorrection of color error using Color Correction Fiter
    • ¤ýThermo-Stabilization Control : 30¡É
    • ¤ýRapid integration time of 5~65,000msec
    • ¤ýUse of lamp power of 3000 watt
    • ¤ýLower than diffusing light of 0.05% at 600nm
    • ¤ýTE cooled 2048 element linear silicon CCD array

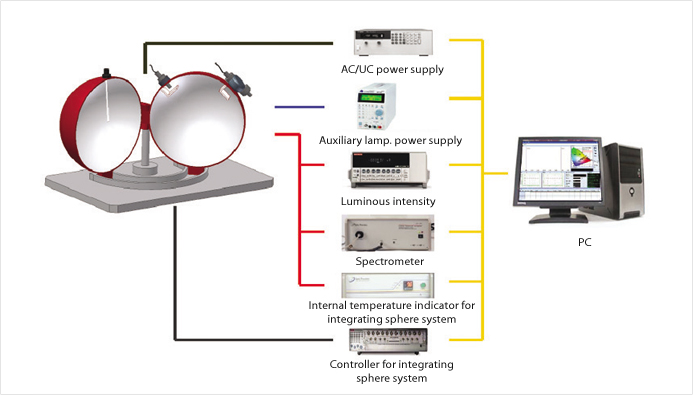

    • ¤ýDetector is equipped, Improving internal absorption rate using auxiliary lamp and power supply
    •
    •
    • ¤ýUnder correction business using halogen lamp of 110V. 60W which are total luminous flux standard material(CRM) provided
         by KRISS (Korea Research Institute of Standards and Science)
    •
    • R&D, ½ŷڼº ÃøÁ¤¿¡ ÃÖÀû
    •
    • ¤ýSpectral characteristics : Peak wavelength, Medium wavelength, Center wavelength, Primary wavelength, Full Width Half
         Max, CIE1931 Color coordinate, Correlated color temperature,
    •
    •
    • Measurement items Source Range Measuremnet
      Range Accurace Resolution
      wavelength [nm] External power 350~830 ¡¾0.3 +1
      Color coordinate Cx, Cy External power 0~0.7 ¡¾0.002 ¡¾0.002
      total luminous flux Lm External power 0.01~1000 < 5% 0.001
      total radiant flux mW External power 0.01~100 < 5% 0.001
        Measuring luminous characteristics depending on time
        Measuring luminous characteristics depending on current
        Measuring luminous characteristics depending on voltage
