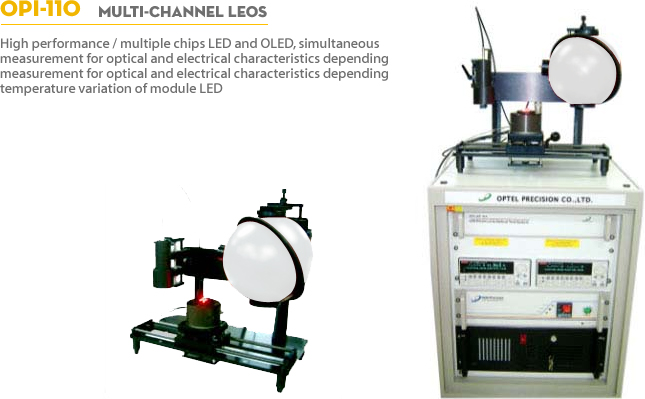

    • opi-110
    • , ƼĨ led/oled
    • Various outputs, Capable of measuring optical and electrical characteristics for multiple chips, module LED/OLED
    • Capable of supplying current and measuring up to 3A, and continuous and pulse type also selectable.
    • Multi channel source is possible.
    • Supporting suitable adaptors for various packages
    • , ,  Ư
    • High sensitvity, High resolution spectrometer - Highest wavelength, dominant
         wavelength, Full Width Half Max, Color coordinate, Luminous intensity and luminous flux,
         Intensity radiation, radiant flux, Correlated color temperature, color rendering index and
         Luminous efficiency
    • High speed and high precision Sourcemeter - Forward/Backward current voltage,
         luminous-current-voltage sweep.
    • Adopting barrel and Integrating Sphere System simultaneously - Convenient measurement
         for Luminous intensity / total luminous flux
    • High resolution spectral ability, High power TE temperature controller - Measuring optical
         / electrical thermal characteristics for targeted objects within temperature of 0~100
        [Temperature resolving power is 0.1]
    • Measuring K-factor, joined part temperature, thermal resistance and structural
         function(Selectable)
    • ǰ˻  R&D, ŷڼ
    • Sweep measurement : current-voltage, voltage-current, current-light Sweep
    • Measuring electrical, luminous and thermal characteristics depending on time
    • Various spectral areas(UV,UV-VIS,VIS,VIS-IR)are selectable
    • Various optical fibers and SMA connector, Cosine collector are selectable
    • Various power supply using Keithley Sourcemeter
    • Special functions can be added based on customer requirement (Optional)



    •  Ǽ
    • Measuring optical / electrical / htermal characteristics simultaneously by one-click
    • Capable of setting 20 electrical characteristics and continuous measurement
    • Optical multiple measurement - Capable of setting 10 current supply conditions,
         continuous measurement
    • Setting measurement conditions for each targeted objects, Storing and retrieval
    • Intuitive recognition for measurement result by spectrum and color coordinate
    • Using with PC by built-in high performance industrial computer
    • Storing results of measurement as text, Excel(*, CSV) . picture files (BMP)
