    • opi-170

    • led eip chip wafer
    •

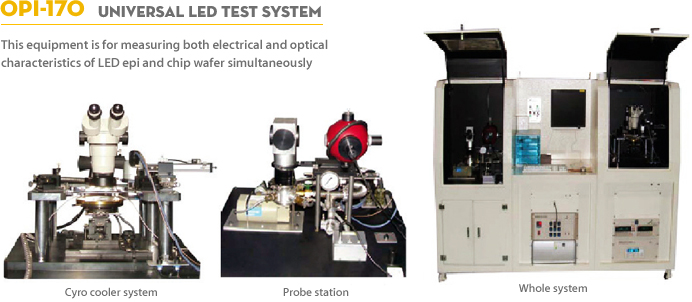

    • Universal LED Tester System comsists of Cryo cooler system for controlling extreme temperature and Integrating Sphere System
         for measuring total luminous flux or total radiant flux of chip
    • Cryo cooler system is a chamber in which pieces of epi and chip wafer or single LED are put together. And this system is able to
         measure optical / electrical characteristics of sample freely wihtin temperature of 10K~380K
         [temperature resolving power is 0.1]
    • Probe station is able to measure optical / electrical characteristics of epi and chip wafer
    • Integrating Sphere System of 6 inch measures Luminos intensity depending on emperature variations with cryo cooler system,
         and calculates photoelectric efficiency and total luminos fluc and total radiant flux of chip SED attached to TOCAN
    •
    • , Ư
    •
    • Optical characteristics measurement items
    • Spectral characteristics : peak wavelength, primary wavelength, medium wavelength, central wavelength, Full Width Half Max,
         color coordinate, color purity, color temperature, Color rendering index
    • Radiational intensity : Luminous intensity, intensity radiation, total luminous flux and total radiant flux.
    • Electrical characteristics measurement items
    • Fprward current, backward voltage, backward current and backward voltage
    • Sweep measurement Current-voltage, Voltage-current, Current-luminous characteristics, Temperature- electricity and
         Temperature-luminous
    • Measurement for spectral characteristics using high sensitivity, high resolution spectrometer It uses Integrating Sphere System-
         typed input photometer and spectrometer for stable Luminous intensity
    • Current supply fof measuring electrical characteristics using high speed and high precision sourcemeter is allowed up to 3A,
         and continuous and pulse-typed output is available


    • , ǰ. ŷڼ
    •
    • Sweep measurement : current-voltage, voltage-current, current-light Sweep
    • Measuring electrical, luminous characteristics depending on time
    • Various spectral areas(UV, UV-VIS, VIS, VIS-IR)are selectable
    • Variious power supply (voltage, current and pulse) and measurement ranges are selectable using Keithley2430 Sourcemeter
    • Special functions can be added based on customer requirement (Optional)
    •
    •
    • ȯ
    •
    • Measuring multiple chips are allowed to be performed for individual or all channel simultaneously.
    • Various conditional measurements
    •    Repeated Aging Time measurement: after aging sample for certain time, and one time measurement is performed by repeated times
    •    Constant time interval aging time measurement: after aging sample for certain time, measurement is performed by constant time
         interval
    • Measured data is stored (CSV file) so as to recognize variations of optical / electrical characteristics intuitively.
    • Temperature variation data depending on time is stored (data and picture)
    • For managing measurement condition, storing it into project file or retrieving it from project file is available
    •
    • Ȯϰ ż µ
    •
    • Providing standard measurement mode of International Commission on Illumination and KS
    • Correction by standard lamp and LED which is retroactive from Korea Research Institute of Standards and Science
    • Correction agent of Korea Reserch Institute of Standards and Science (KRISS)(Optional)
    •
    •
    • User-centric setup and user guide
    • Software development based on customer requirement
    • Providing new measurement method and information via LED standard consortium and International Commission on Illumination
         and Luminous intensity measurement club activities
    • Rapid A/S
    • Support for JIG to help various sample measurement
    •
    • Specifications
      Voltage Range 1V ~ 105V
      Current Range 100pA to 3.5A, 10A[Pulse Only]
      Setting Temperature 9K to 390K Resolution 0.1
      PD Temperature Choice of 20 to 30, fixing
      Spectrometer 350 to 900nm, 2048 CCD array Type
      Optical Head 50mm integrating Sphere
      Photodiode 350 to 900nm, 10 Area
      Dimension 2,400mm[W] x 1,200mm[D] x 1,800mm[H]
