    • opi-400
    • °£ÆíÇϰí ½żÓÇÑ ÃøÁ¤

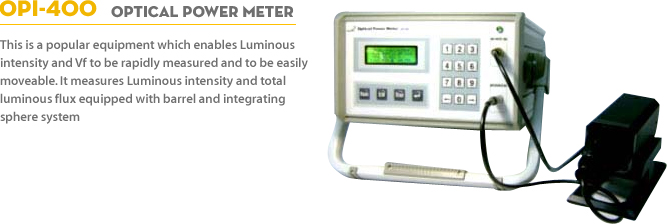

    • ¤ýIt is able to measure LED luminous intensity and Vf easily for Q/C, R/D and production divisions

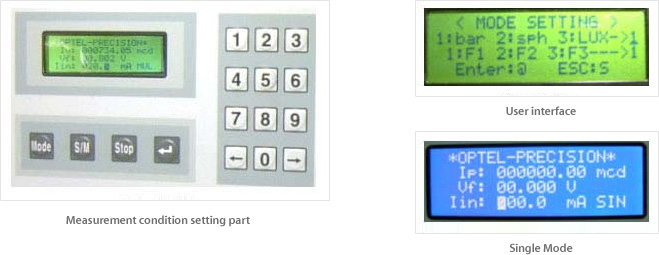

    • ¤ýIt is easy to be moved, and display measurement and the result on its own window without PC
    • ¤ýIt measures Luminous Intensity(mcd) and Luminous Flux(lm) by connecting with barrel and integrating sphere system
    • ¤ýRapid measurement (within 50msec)
    • Á¤ȮÇÑ ÃøÁ¤
    • ¤ýComplying with CIE-127 Standard Condition B
    • ¤ýUse of NIST traceable Photodiode/Photopic filler
    • ¤ýCorrection certifcation for Korea Research Institute of Standards and Science(KRISS)
    • Test items Range Resolution Accuracy
      Current 0~200 mA 1mA 0.05% +0.1mA
      Voltage 0~10.0 V 1mV 0.1% + 0.01V
      Optical Power* 0~10 cd 10mcd <¡¾5%
      Power 200V 60Hz
      Option 1. Spectrum Range : UV / IR
      2. Possible extension of Luminous Intensity Range
      3. Luminous Flux
      4. Illuminunce
      5. Radiant Intensity, Radiant Flux with changing of sensors
    • * Possible change to meet users' condition
