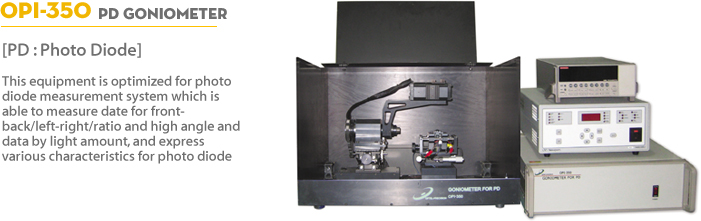

    • opi-350
    • LED epi EL Ư

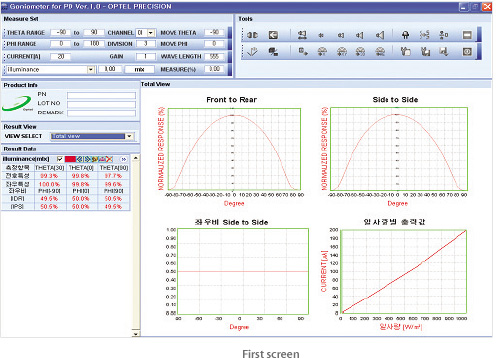

    • This system is able to measure front-back, left-right, high angle output based on light amount, and other various items, and then display them as numeral and graphic screem.
    •   and sunshine, and other full screen; diverse numeral and graphic output screen
    • 1) Polar coordinate
    • 2) Characteristics for front-back : PHI 0 degree, THETA -90 ~ 90 degree of rotation / date
    • 3) Characteristics for left-right : PHI 90 defree, THETA -90~ 90 degree of rotation / date
    • 4) Ration to left-right : THETA 30 degree, PHI -90 ~ 90 degree of rotation/ date
    • 5) High angle : Rotate PHI 360 degree at specified angle of THETA / date
    • 6) Light amount : Variations in QTH current at PHI angle / date
    • 7) For each channel : Measurement channel is selectable by user, 1 channel for one measurement
    • 8) Total screen (1~5 items)
    • * Additional measurement screen
    • 1. X measurement (single measurement): Fix PHI at user spe-cific angle, measure it by rotating THETA at -90 ~ 90(PHI : 30 degree/ 60 degree)
    • 2. XY measurement (Continuous) : Set PHI to 0, 90 degree respec-tively, and measure it by rotating THETA at -90 ~ 90 (PHI:0/90)
    •    and 90 (PHI: 0/90)
    • 3. 3D measurement (Continuous) : Divide PHI by certain angle and measure it by rotating THETA at -90 ~ 90(Example, PHI0/60/120/180 Degree)
    • All measured data is expressed by graphs or data (number)
    • پ Ǽ
    • It is possible to set a desired interval and measurement condition by users
    • It is avle to set moving speed and measurement time for Theta/Phi, and to addnecessary items by option.
    • ,
    • XYZ micrometer which enables various photo diode elements to be exactly aligned and fixed
    • Motor that smoothly rotates light source without vibration and fan and plate for heat discharging
    • QTH Lamp and Power supply controlled by computer

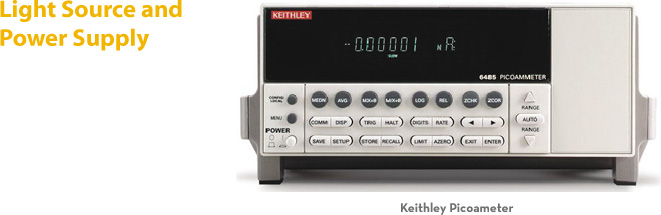

    • Use of Keithley Picoammeter that is able to measure up to 1pA





    • پ Ȱ뼺
    • 2D and 3D measurement by rotating ARM and PD
    • Various file formats such as BMP and CSV including user specific formats for storing and out put
    • Storing basic spec data as well as user specific angle data
    • Each result graph screen is easy to be suitched into user specific screen





    • Papid support for use and additional optional functions
    • Providing most up-to-date information related with optical measurement vialuminous measurement club and International Commission on Illumination
    • light source and power supply
    • Light Source
    • QTH Complete Calibration Source : 45~300W
    • Color Temperature : 2800~3050 K
    • Power Supply
    • AC Mains Input : 95-132 VAC/4.5A max, 190 - 264 VAC/3A max, 56/60 Hz
    • DC Current Output : Adjustable from 3.00-24.00A, In 0.01A increments
    • DC Power Output (see note) : Adjustable from 40-300W, In 1W increments
    • DC Voltage Output : Load dependent, 50V max
    • Light Output Ripple : Typically 0.05% R.M.S
    • Meter Accuracy : 0.1% of full scale
    • Sine / Load Regulation : 0.05%
    • Operating Temperature : 10-40C
    • Weight : 20lbs
    • Range 51/2Digit
      Default
      Resolution      		 (%rdg.+offset)
      18~28C, 0~70% RH      		 Typical
      RMS Noise      		 Analog
      Rise Time
      2nA 10fA 0.4%+100fA 20fA 8ms
      20nA 100fA 0.4%+1pA 100fA 8ms
      200nA 1pA 0.2%+10pA 1pA 500s
      2A
      		 10pA 0.15%+100pA 10pA 500s
      20A 100fA 0.1%+1nA 100pA 500s
      200A 1pA 0.1%+10nA 1nA 500s
      2A
      		 10pA 0.1%+100nA 10nA 500s
      20A 100fA 0.1%+1A 100nA 500s
